Electrodes

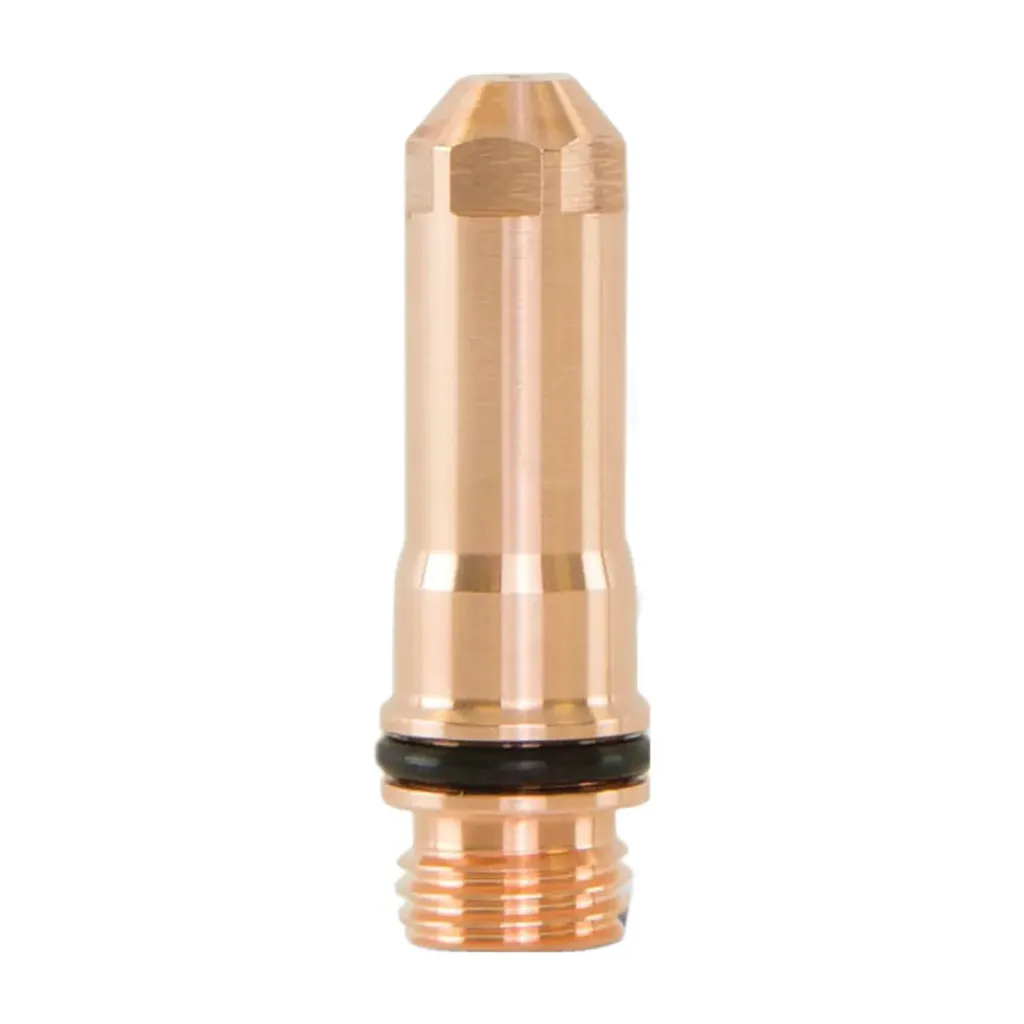

220181 Hypertherm Electrode - 130A Mild Steel - HPR260/130 / HPRXD / HD4070
Part number: 220181
We take care to ensure fitment information is accurate, but your machine's operator manual is the definitive guide to consumable & parts compatibility. If you are unsure, contact us before ordering.
Plazmax is an authorised Hypertherm OEM Channel Partner.
Dispatched NZ and Australia wide. Prices exclude GST. 30 day returns on unopened stock.
Full specifications
| Part number | 220181 |
|---|---|
| Brand | Hypertherm |
| Component | Electrodes |
| Amperage | 100A, 130A |
| Gas / process | Air |
| Material | Mild Steel, Aluminium |
| Cut type | Straight |
| Fits systems | HPR260/130, HPRXD, HD3070 (HyPerformance torch), HD4070 (HyPerformance torch) |
| Supersession | Replaced by 220665 |
Product details
The Hypertherm 220181 is the genuine OEM 130 amp electrode for mild steel cutting on HyPerformance HPR260, HPR130, HPRXD and HD4070 systems, and is also the 130 amp air electrode on the aluminium process on HPR260, HPR130 and HPRXD.
The electrode is the starting point and electrical contact point of the plasma arc. It wears through the hafnium insert as it works, and replacing it on measured pit depth rather than on hours protects the nozzle and the torch behind it.
At 130 amps mild steel this electrode pairs with nozzle 220182, swirl ring 220179 and shield 220183. On HD3070 systems the same electrode serves the 100 amp mild steel process, where it pairs with nozzle 220510. A SilverPlus version, 220665, is available for the same process and typically delivers around twice the life of the copper electrode.
Supplied by Plazmax as an Authorised Hypertherm Channel Partner. Genuine parts, GST-exclusive pricing, dispatched Australia and New Zealand wide.
