Superseded → 420566
Images are indicative only and may not show the exact item supplied. Please order by part number.
Electrodes

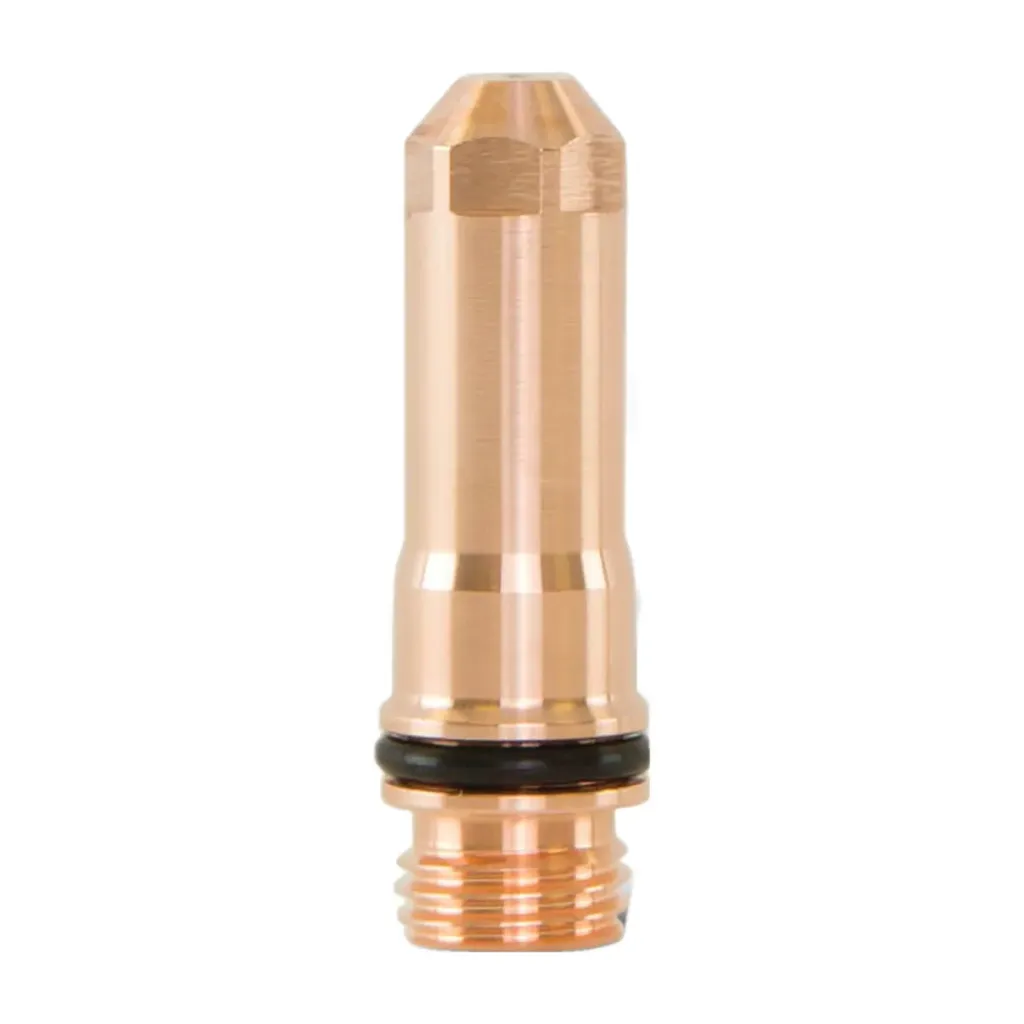

220187 Hypertherm Electrode - 80A Mild Steel - HPR260/130 / HPRXD / HD4070 / HD3070
Part number: 220187
We take care to ensure fitment information is accurate, but your machine's operator manual is the definitive guide to consumable & parts compatibility. If you are unsure, contact us before ordering.
220187 has been superseded by 420566.
View current part 420566Plazmax is an authorised Hypertherm OEM Channel Partner.
Dispatched NZ and Australia wide. Prices exclude GST. 30 day returns on unopened stock.
Full specifications
| Part number | 220187 |
|---|---|
| Brand | Hypertherm |
| Component | Electrodes |
| Amperage | 70A, 80A |
| Material | Mild Steel, Stainless Steel, Aluminium |
| Cut type | Straight |
| Fits systems | HPR260/130, HPRXD, HD3070 (HyPerformance torch), HD4070 (HyPerformance torch) |
| Supersession | Replaced by 420566 |
Product details
The Hypertherm 220187 is the genuine OEM 80 amp electrode for mild steel cutting on HyPerformance HPR260, HPR130, HPRXD, HD4070 and HD3070 systems.
The electrode is the starting point and electrical contact point of the plasma arc. It wears through the hafnium insert as it works, and replacing it on measured pit depth rather than on hours protects the nozzle and the torch behind it.
At 80 amps mild steel this electrode pairs with nozzle 220188, swirl ring 220179 and shield 220189. On HD3070 systems the same electrode also serves the 70 amp stainless steel and aluminium processes. A SilverPlus version, 420566, is available for the same process and typically delivers around twice the life of the copper electrode.
Supplied by Plazmax as an Authorised Hypertherm Channel Partner. Genuine parts, GST-exclusive pricing, dispatched Australia and New Zealand wide.
