Electrodes

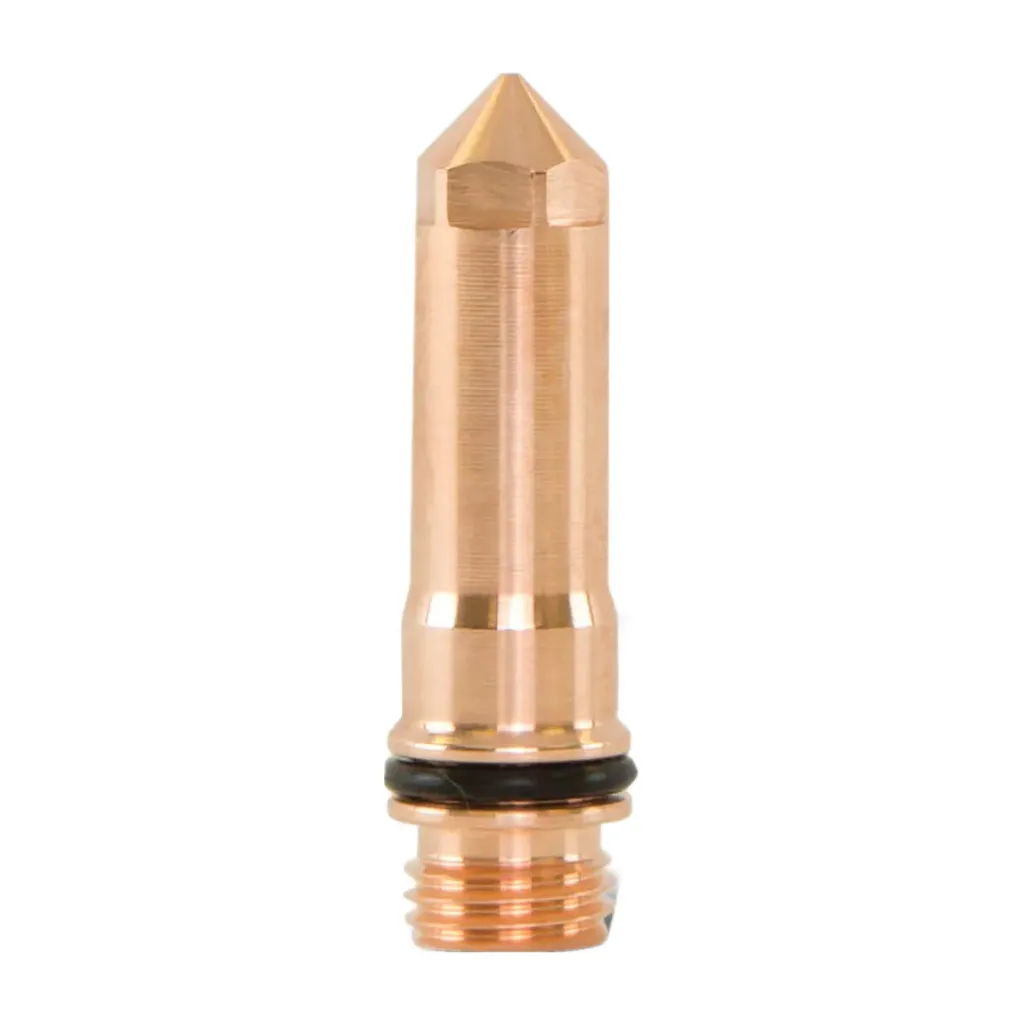

220308 Hypertherm Electrode - 45A Stainless Steel/Aluminium - HPR260/130 / HPRXD / HD4070 / HD3070
Part number: 220308
We take care to ensure fitment information is accurate, but your machine's operator manual is the definitive guide to consumable & parts compatibility. If you are unsure, contact us before ordering.
Plazmax is an authorised Hypertherm OEM Channel Partner.
Dispatched NZ and Australia wide. Prices exclude GST. 30 day returns on unopened stock.
Full specifications
| Part number | 220308 |
|---|---|
| Brand | Hypertherm |
| Component | Electrodes |
| Amperage | 45A |
| Material | Stainless Steel, Aluminium |
| Cut type | Straight |
| Fits systems | HPR260/130, HPRXD, HD3070 (HyPerformance torch), HD4070 (HyPerformance torch) |
Product details
The Hypertherm 220308 is the genuine OEM 45 amp electrode for stainless steel and aluminium cutting on HyPerformance HPR260, HPR130, HPRXD, HD4070 and HD3070 systems.
The electrode is the starting point and electrical contact point of the plasma arc. It wears through the hafnium insert as it works, and replacing it on measured pit depth rather than on hours protects the nozzle and the torch behind it.
At 45 amps this electrode pairs with nozzle 220201, swirl ring 220180 and shield 220202 on both the stainless steel and aluminium processes. Using a matched consumable stack is what delivers rated life; mixing amperage classes is the most common cause of premature failure.
Supplied by Plazmax as an Authorised Hypertherm Channel Partner. Genuine parts, GST-exclusive pricing, dispatched Australia and New Zealand wide.
