Electrodes

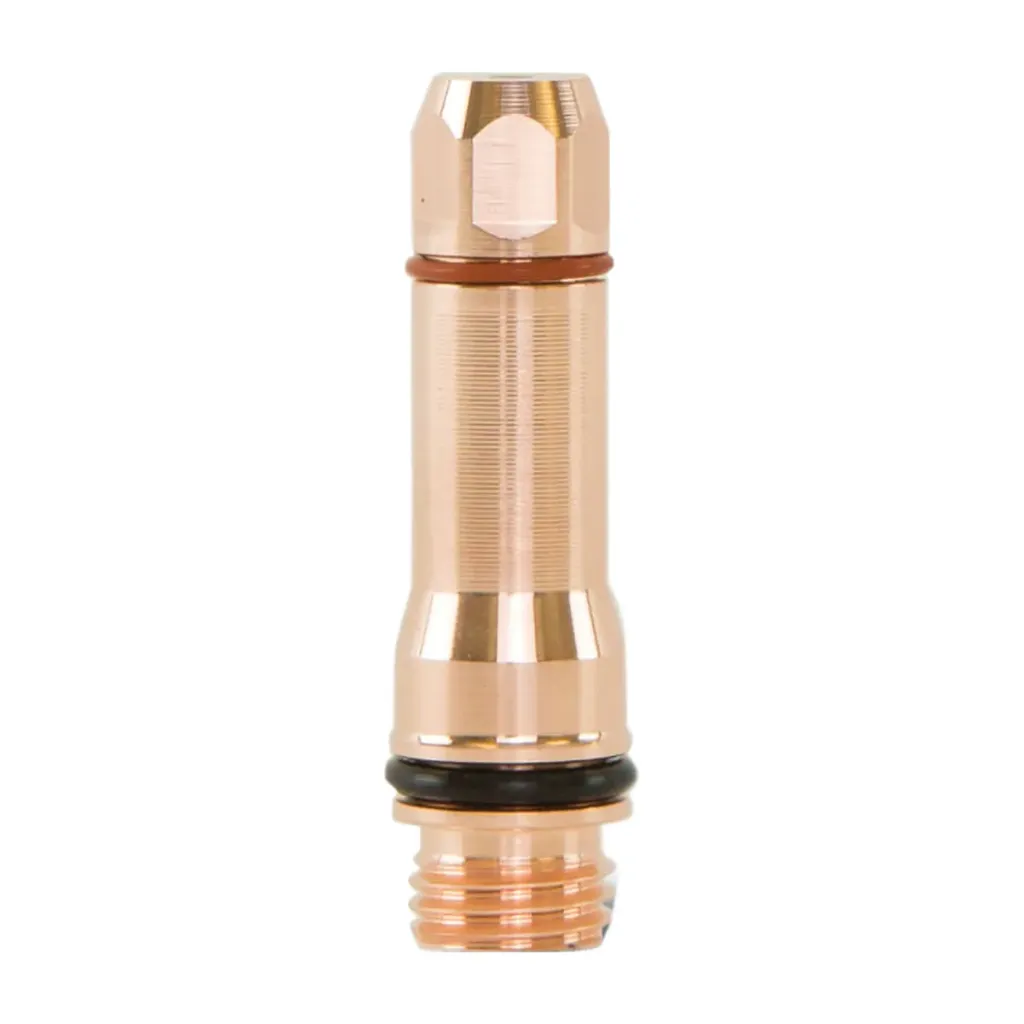

220629 Hypertherm Electrode - 400A Mild Steel - HPRXD
Part number: 220629
We take care to ensure fitment information is accurate, but your machine's operator manual is the definitive guide to consumable & parts compatibility. If you are unsure, contact us before ordering.
Plazmax is an authorised Hypertherm OEM Channel Partner.
Dispatched NZ and Australia wide. Prices exclude GST. 30 day returns on unopened stock.
Full specifications
| Part number | 220629 |
|---|---|
| Brand | Hypertherm |
| Component | Electrodes |
| Amperage | 400A |
| Material | Mild Steel |
| Cut type | Straight, Bevel |
| Fits systems | HPRXD |
| Supersession | Replaced by 420530 |
Product details
The Hypertherm 220629 is the genuine OEM 400A electrode for mild steel cutting on HyPerformance HPRXD systems.
The electrode is the starting point and electrical contact point of the plasma arc. It wears through the hafnium insert as it works, and replacing it on measured pit depth rather than on hours protects the nozzle and the torch behind it.
At 400 amps mild steel this electrode pairs with nozzle 220632, swirl ring 220631 and shield 220636, on both straight-cut and bevel torches. A SilverPlus version, 420530, is available for the same process.
