Electrodes

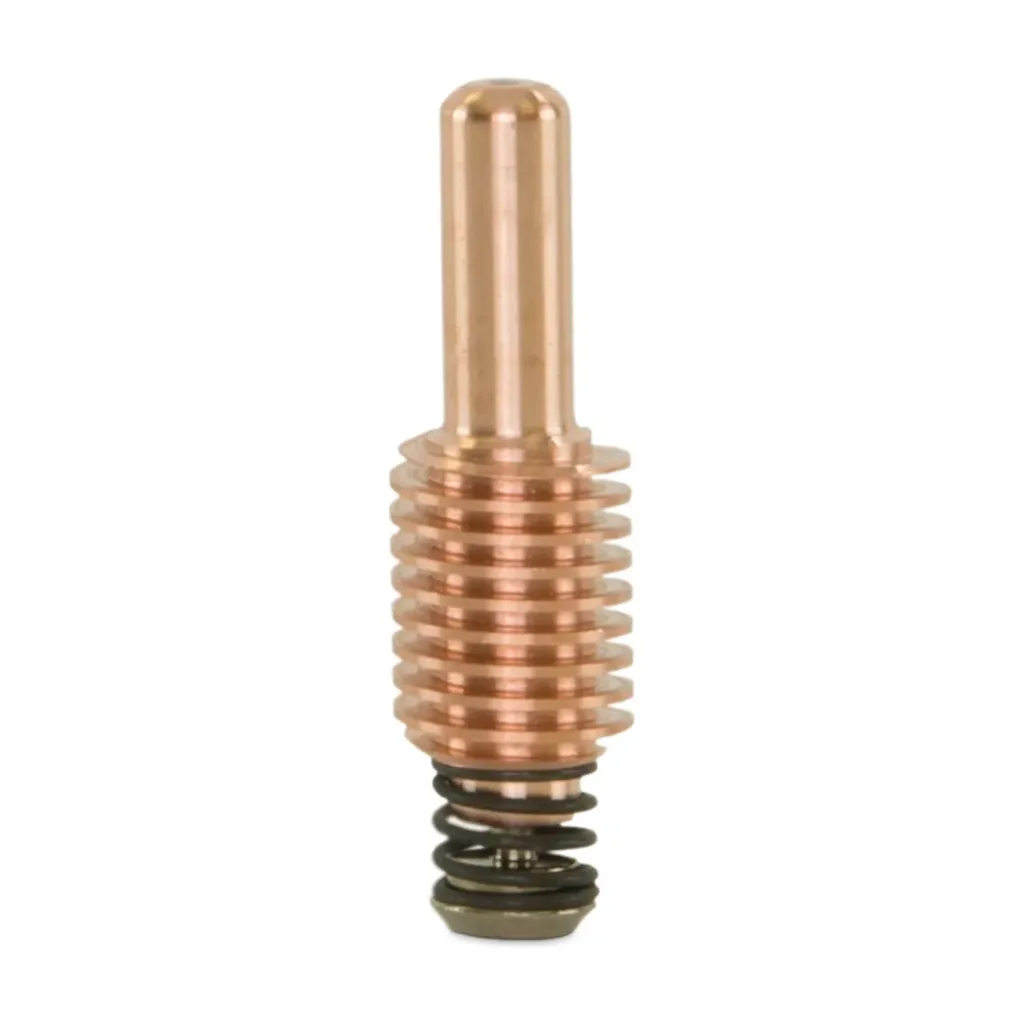

220842 Hypertherm Electrode - 30-105A, Pack of 5 - Powermax45 XP/65/85/105 Duramax
Part number: 220842
We take care to ensure fitment information is accurate, but your machine's operator manual is the definitive guide to consumable & parts compatibility. If you are unsure, contact us before ordering.
This part is used in both handheld and mechanised Duramax torches. Plazmax supplies Powermax consumables for mechanised (CNC) cutting systems, so this item is available on request. Tell us about your cutting table and we'll confirm availability and pricing.
Plazmax is an authorised Hypertherm OEM Channel Partner.
Dispatched NZ and Australia wide. Prices exclude GST. 30 day returns on unopened stock.
Full specifications
| Part number | 220842 |
|---|---|
| Brand | Hypertherm |
| Component | Electrodes |
| Amperage | 30A, 45A, 65A, 85A, 105A |
| Gas / process | Air, F5 |
| Material | Mild Steel, Stainless Steel, Aluminium |
| Cut type | Straight |
| Fits systems | Powermax Duramax |
Product details
The Hypertherm 220842 is the genuine OEM electrode for Duramax and Duramax Lock torches on the Powermax45 XP, Powermax65, Powermax85 and Powermax105, supplied as a pack of 5. It is the one electrode across the whole mechanised range, from 30-45 A FineCut through 45, 65, 85 and 105 A cutting.
The electrode carries the hafnium insert the arc starts from. Once the insert has pitted to around 1 mm deep, arc stability and cut quality drop quickly, so it is normally changed together with the nozzle.
For longer life where most of your cutting is 12 mm and under, Hypertherm offers the 220777 CopperPlus electrode in its place. Also available as a bulk pack of 25, Hypertherm part number 228767. Contact us to order.
Hypertherm publishes mechanised cut charts on mild steel, stainless steel and aluminium using air, and on stainless steel using F5 at 45 to 105 A on the Powermax65, Powermax85 and Powermax105.
Listed in Hypertherm catalogue 880200 R21, pages 47 and 54-65.
Supplied by Plazmax as an Authorised Hypertherm Channel Partner. Genuine parts, GST-exclusive pricing, dispatched Australia and New Zealand wide.
