Nozzles

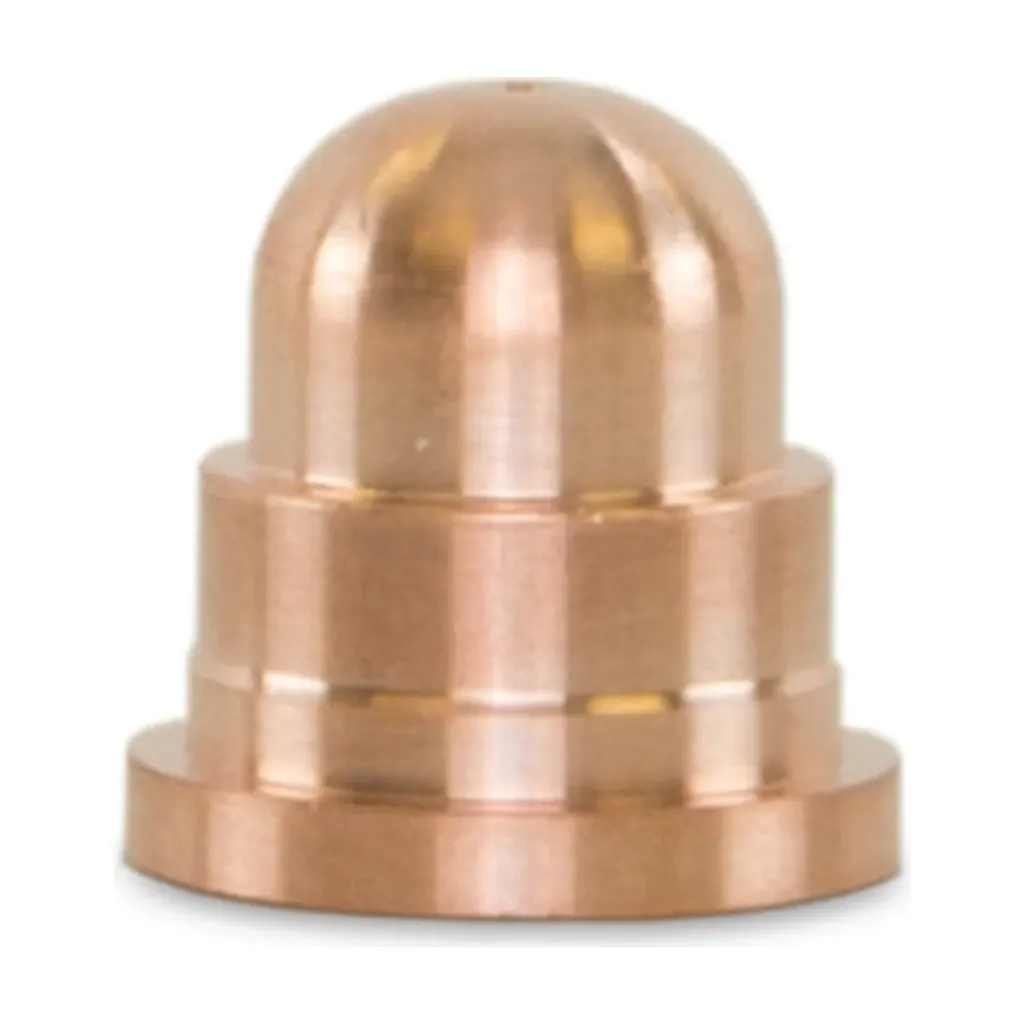

220930 Hypertherm FineCut Nozzle - 30-45A, Pack of 5 - Powermax45 XP/65/85/105 Duramax
Part number: 220930
We take care to ensure fitment information is accurate, but your machine's operator manual is the definitive guide to consumable & parts compatibility. If you are unsure, contact us before ordering.
This part is used in both handheld and mechanised torches. Plazmax supplies Powermax consumables for mechanised (CNC) cutting systems, so this item is available on request. Tell us about your cutting table and we'll confirm availability and pricing.
Plazmax is an authorised Hypertherm OEM Channel Partner.
Dispatched NZ and Australia wide. Prices exclude GST. 30 day returns on unopened stock.
Full specifications
| Part number | 220930 |
|---|---|
| Brand | Hypertherm |
| Component | Nozzles |
| Amperage | 30A, 45A |
| Gas / process | Air |
| Material | Mild Steel, Stainless Steel |
| Cut type | Straight |
| Fits systems | Powermax Duramax |
Product details
The Hypertherm 220930 is the genuine OEM FineCut nozzle for Duramax and Duramax Lock torches on the Powermax45 XP, Powermax65, Powermax85 and Powermax105, at 30-45 A. Supplied as a pack of 5.
FineCut gives a narrower kerf and a smaller heat-affected zone on thin sheet, for detailed parts. On a cutting table the FineCut stack is the 220948 ohmic shield or 220955 deflector, the 220854 or 220953 ohmic retaining cap, this nozzle, the 220842 electrode and the 220947 FineCut swirl ring.
Also available as a bulk pack of 25, Hypertherm part number 228761. Contact us to order.
Hypertherm publishes mechanised FineCut cut charts on mild steel and stainless steel using air. Hypertherm does not recommend F5 with FineCut consumables.
Listed in Hypertherm catalogue 880200 R21, pages 47, 55, 61, 63 and 65.
Supplied by Plazmax as an Authorised Hypertherm Channel Partner. Genuine parts, GST-exclusive pricing, dispatched Australia and New Zealand wide.
