Nozzle Retaining Caps

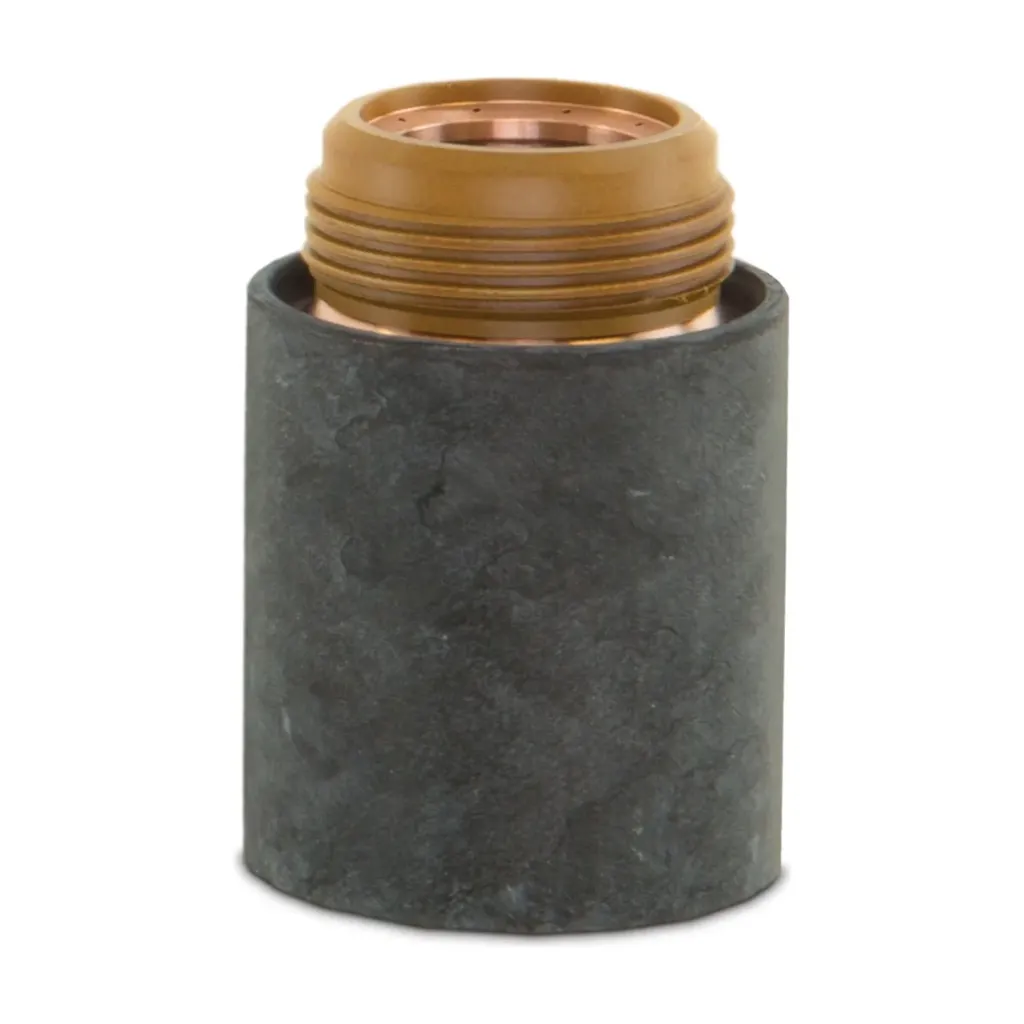

220977 Hypertherm Retaining Cap - 30-125A - Powermax125 Duramax Hyamp
Part number: 220977
We take care to ensure fitment information is accurate, but your machine's operator manual is the definitive guide to consumable & parts compatibility. If you are unsure, contact us before ordering.
This part is used in both handheld and mechanised torches. Plazmax supplies Powermax consumables for mechanised (CNC) cutting systems, so this item is available on request. Tell us about your cutting table and we'll confirm availability and pricing.
Plazmax is an authorised Hypertherm OEM Channel Partner.
Dispatched NZ and Australia wide. Prices exclude GST. 30 day returns on unopened stock.
Full specifications
| Part number | 220977 |
|---|---|
| Brand | Hypertherm |
| Component | Nozzle Retaining Caps |
| Amperage | 30A, 45A, 65A, 85A, 105A, 125A |
| Gas / process | Air |
| Material | Mild Steel, Stainless Steel, Aluminium |
| Cut type | Straight |
| Fits systems | Powermax Duramax Hyamp |
Product details
The Hypertherm 220977 is the genuine OEM retaining cap for Duramax Hyamp torches on the Powermax125. Hypertherm also lists Duramax Hyamp torches and consumables as compatible with the Powermax45 XP, Powermax65, Powermax85 and Powermax105, from 30 to 125 A.
The retaining cap holds the nozzle, electrode and swirl ring in alignment and seals the gas path. A cracked or heat-damaged cap lets the stack sit off-centre, which shows up as bevel and an uneven kerf. For ohmic initial height sensing, Hypertherm lists the 420156 ohmic cap.
Hypertherm publishes Powermax125 mechanised cut charts on mild steel, stainless steel and aluminium using air. Hypertherm's F5 process is not intended for Duramax Hyamp torches or consumables.
Listed in Hypertherm catalogue 880200 R21, pages 30-31.
