Nozzle Retaining Caps

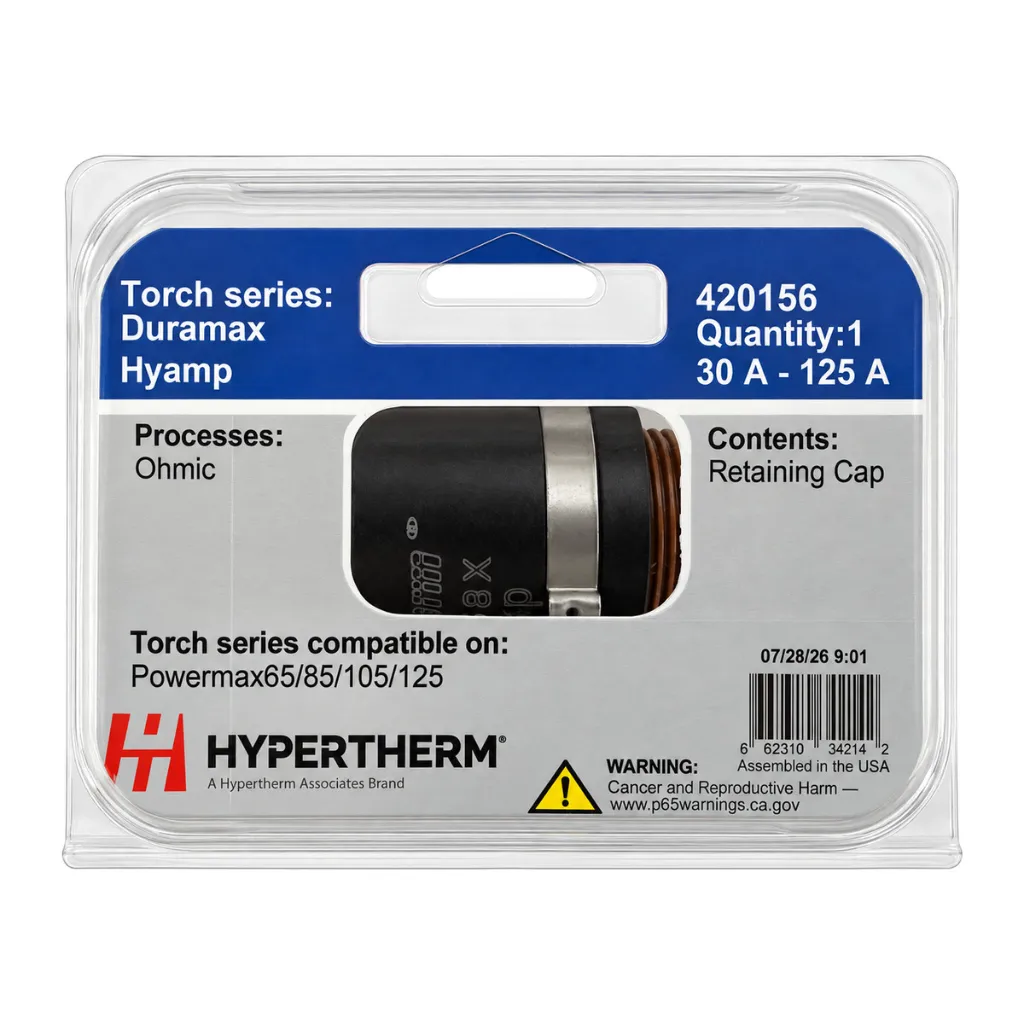

420156 Hypertherm Ohmic Retaining Cap - 30-125A Mechanised - Powermax125 Duramax Hyamp
Part number: 420156
We take care to ensure fitment information is accurate, but your machine's operator manual is the definitive guide to consumable & parts compatibility. If you are unsure, contact us before ordering.
Plazmax is an authorised Hypertherm OEM Channel Partner.
Dispatched NZ and Australia wide. Prices exclude GST. 30 day returns on unopened stock.
Full specifications
| Part number | 420156 |
|---|---|
| Brand | Hypertherm |
| Component | Nozzle Retaining Caps |
| Amperage | 30A, 45A, 65A, 85A, 105A, 125A |
| Gas / process | Air |
| Material | Mild Steel, Stainless Steel, Aluminium |
| Cut type | Straight |
| Fits systems | Powermax Duramax Hyamp |
Product details
The Hypertherm 420156 is the genuine OEM ohmic retaining cap for Duramax Hyamp machine torches on the Powermax125, from 30 to 125 A. Hypertherm also lists Duramax Hyamp torches and consumables as compatible with the Powermax45 XP, Powermax65, Powermax85 and Powermax105.

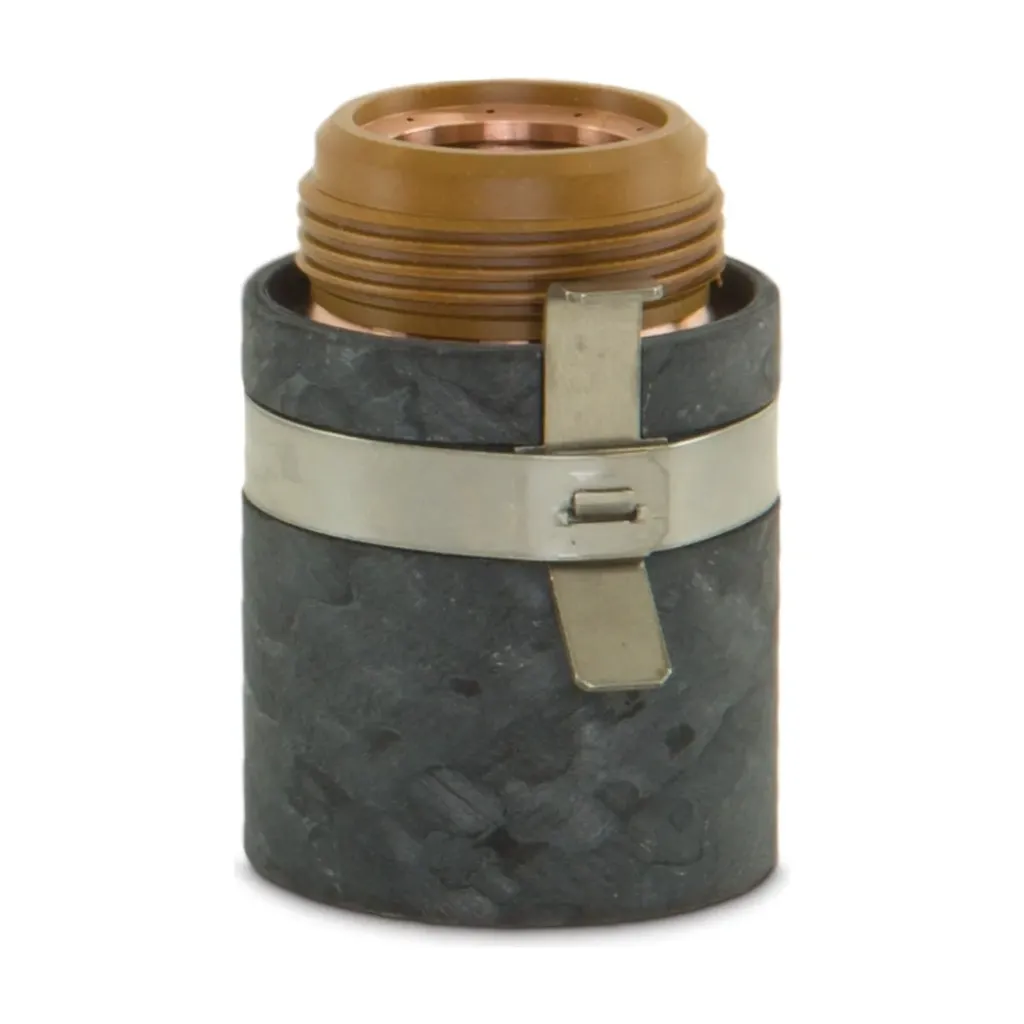

The ohmic cap carries the clip that lets a torch height controller sense the plate through the shield (ohmic initial height sensing), so the torch finds the surface without touching off. It is used in place of the standard 220977 retaining cap on cutting tables with ohmic sensing, for mechanised cutting and FineCut. Hypertherm also supplies it in the 851476 Powermax125 mechanised ohmic consumable kit.
Hypertherm publishes Powermax125 mechanised cut charts on mild steel, stainless steel and aluminium using air.
Hypertherm's F5 process is not intended for Duramax Hyamp torches or consumables.
Listed in Hypertherm catalogue 880200 R21, pages 30-31.
Supplied by Plazmax as an Authorised Hypertherm Channel Partner. Genuine parts, GST-exclusive pricing, dispatched Australia and New Zealand wide.
