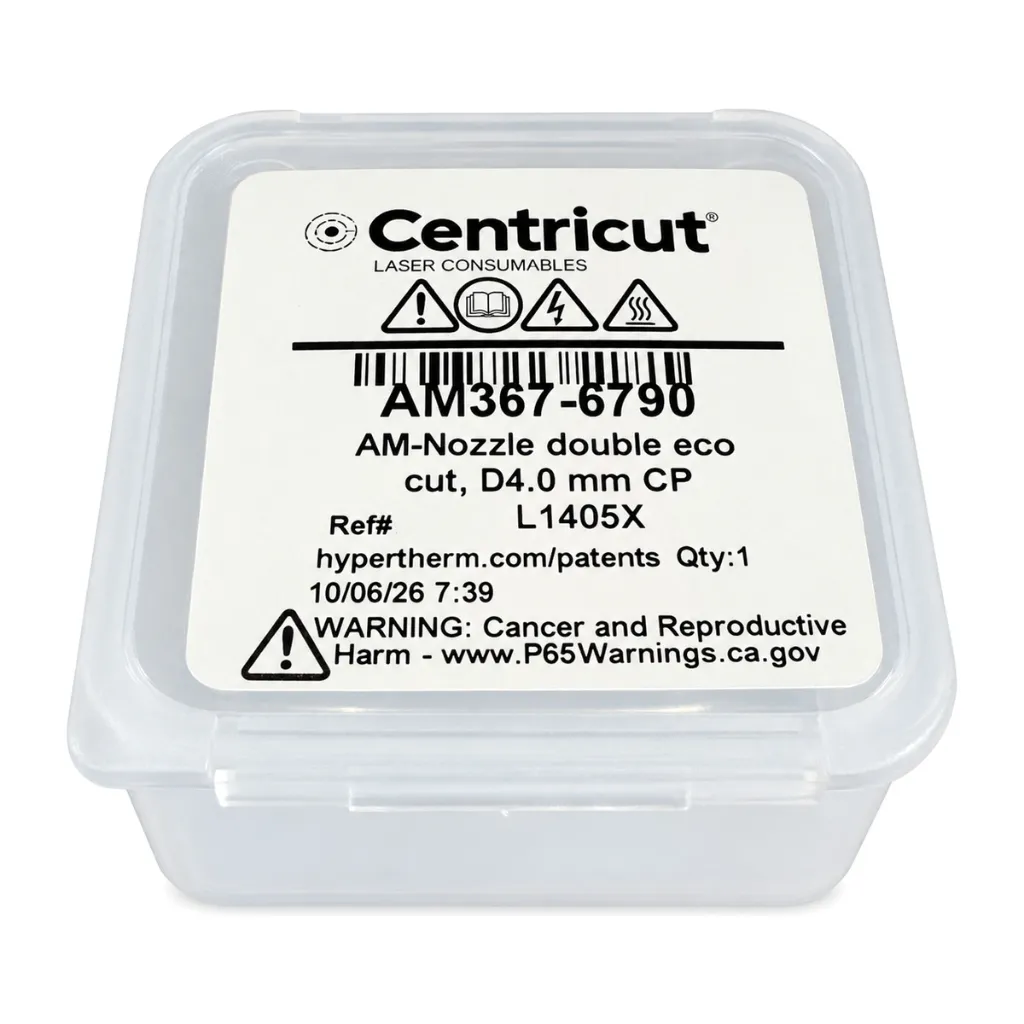

AM367-6790 D4.0E Eco Cut Double Laser Nozzle for Amada, Chrome Plated
For Amada 71516790
Centricut part no: AM367-6790
We take care to ensure fitment information is accurate, but your machine's operator manual is the definitive guide to consumable & parts compatibility. If you are unsure, contact us before ordering.
Centricut parts, supplied by Plazmax.
Dispatched NZ and Australia wide. Prices exclude GST. 30 day returns on unopened stock.
Full specifications
| Part number | AM367-6790 |
|---|---|
| For Amada | 71516790 |
| Also known as | 71501060, 71516790, L1405X |
| Fits machines | Amada |
| Thread | M12 |
| Nozzle body | 25 mm |
| Bore | 4.0 mm |
| Construction | Double |
| Finish | Chrome plated |
| Nozzle series | Eco cut |
| Laser type | Fibre, CO2 |
| Pack quantity | 1 |
Product details

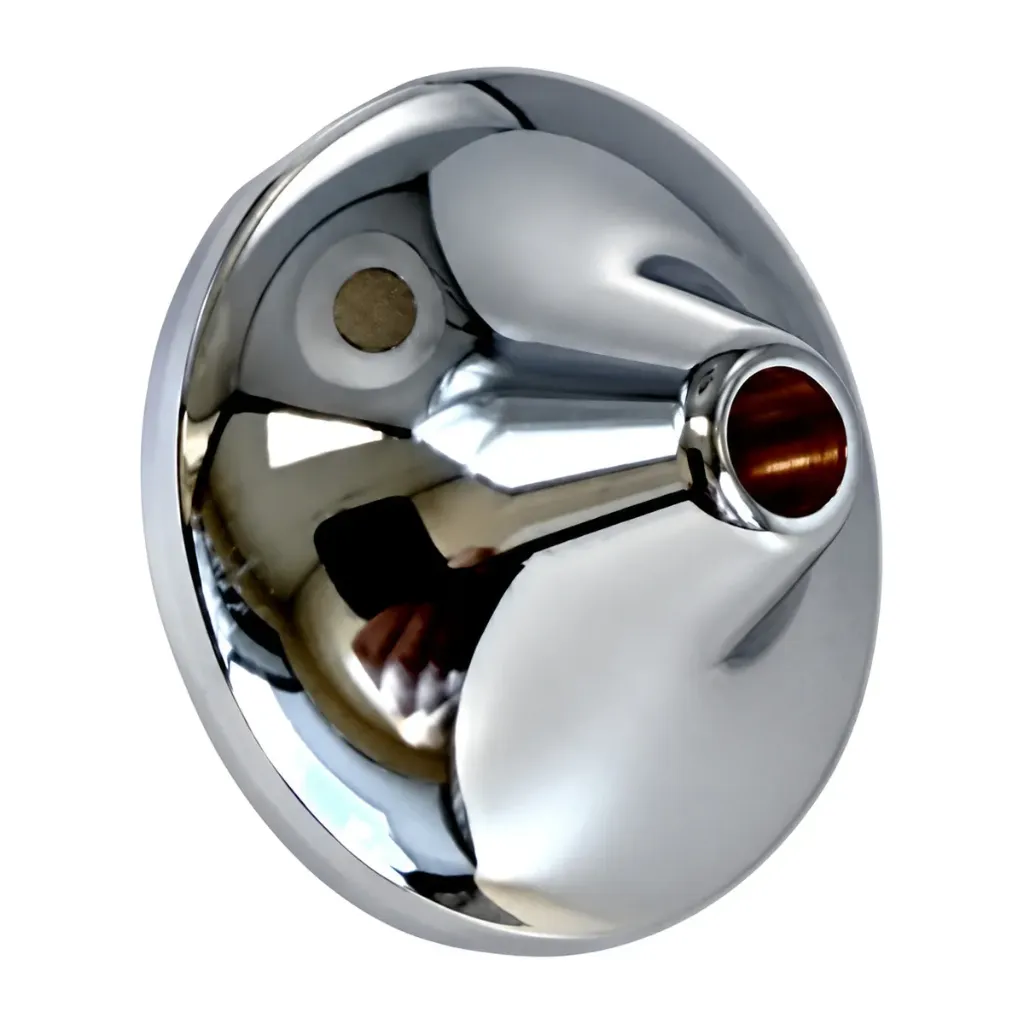

Centricut AM367-6790 is a double-layer D4.0E laser nozzle for Amada, replacing Amada part 71516790. It has an M12 thread, 25 mm diameter and 20 mm height.
Machined from tellurium copper. Chrome plating gives the nozzle better spatter resistance and makes it easier to clean than bare copper.
Centricut is made in Italy by Esse A, a contract manufacturer of laser consumables to OEMs worldwide and part of Hypertherm Associates since 2008. Every part is designed to match the original in fit, quality and performance, made under Hypertherm's internal quality standards, and checked on optical measuring systems and a CMM at Esse A's Sasso Marconi factory.
For Amada: 71516790, 71501060. Centricut part number: AM367-6790. Esse part number: L1405X. Listed in the Centricut laser catalogue 2026, page 12.
Commonly used on Amada ENSIS-AJ and VENTIS fibre lasers and the F1 LCG. Always match the nozzle code on your machine's cutting condition chart.
Amada is a trademark of AMADA CO., LTD. Centricut is in no way directly or indirectly affiliated with AMADA CO., LTD. All parts are made by or for Centricut and are compatible with the listed Amada product. Centricut is a registered trademark of Hypertherm, Inc.
