Nozzle Holders & Adapters
AM367-0364 Nozzle Adapter with Holes and Inner for Amada
For Amada 71712350

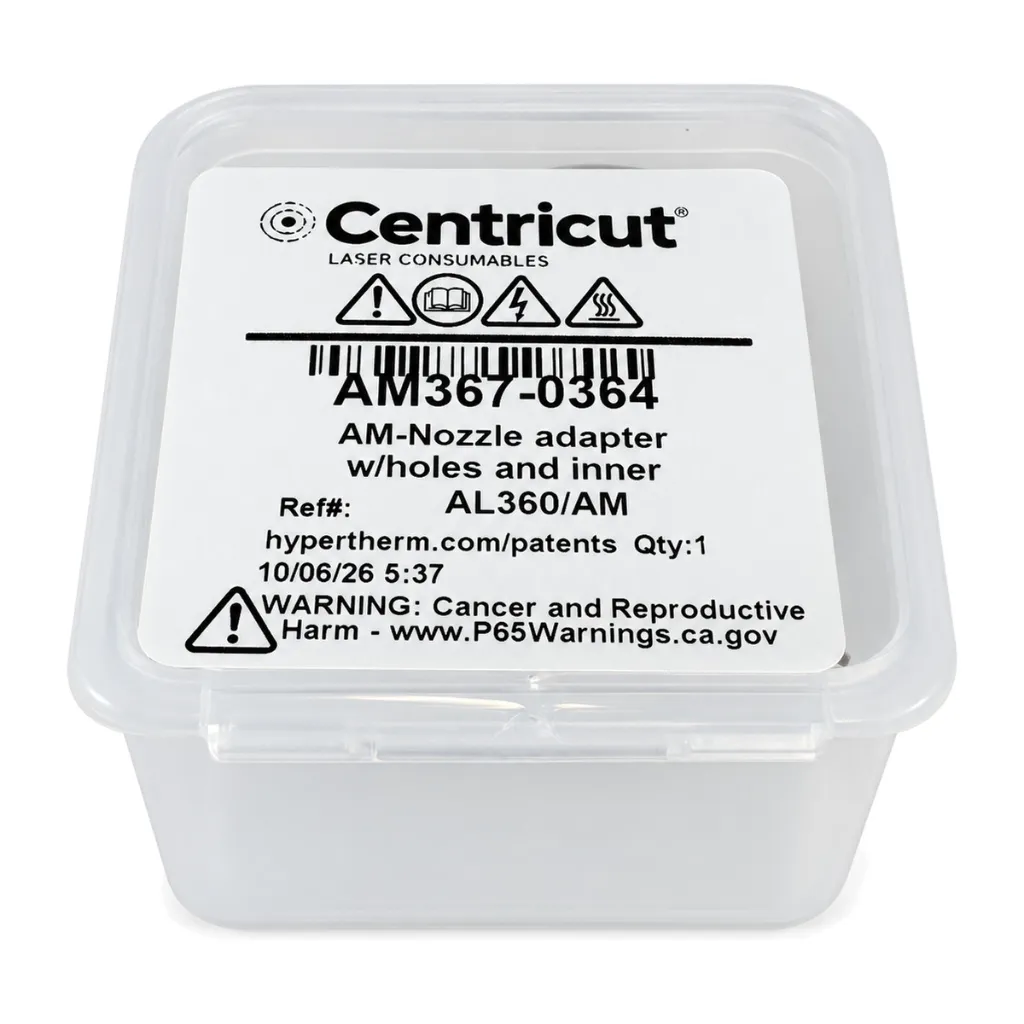

Centricut part no: AM367-0364
We take care to ensure fitment information is accurate, but your machine's operator manual is the definitive guide to consumable & parts compatibility. If you are unsure, contact us before ordering.
Centricut parts, supplied by Plazmax.
Dispatched NZ and Australia wide. Prices exclude GST. 30 day returns on unopened stock.
Full specifications
| Part number | AM367-0364 |
|---|---|
| For Amada | 71712350 |
| Also known as | 71712350, 7973459, AL360/AM |
| Fits machines | Amada |
| Pack quantity | 1 |
Product details

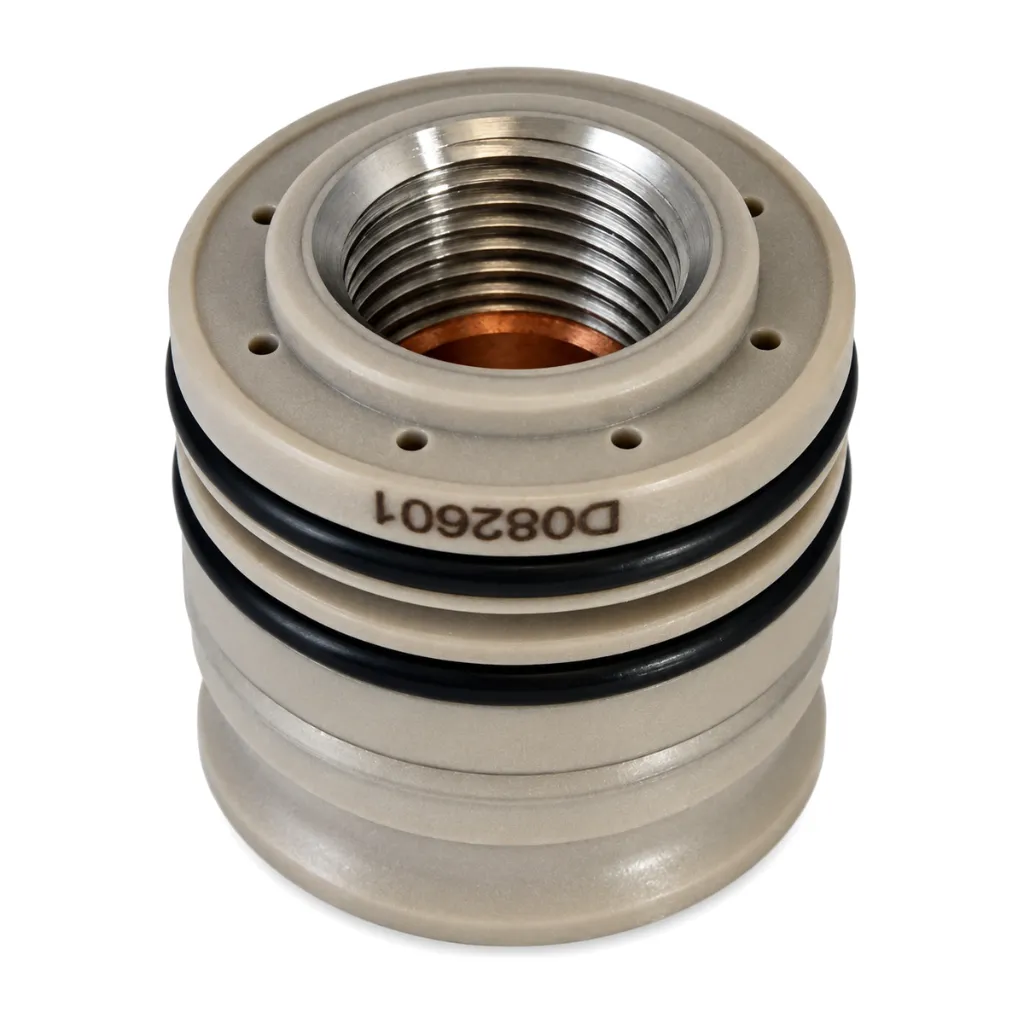

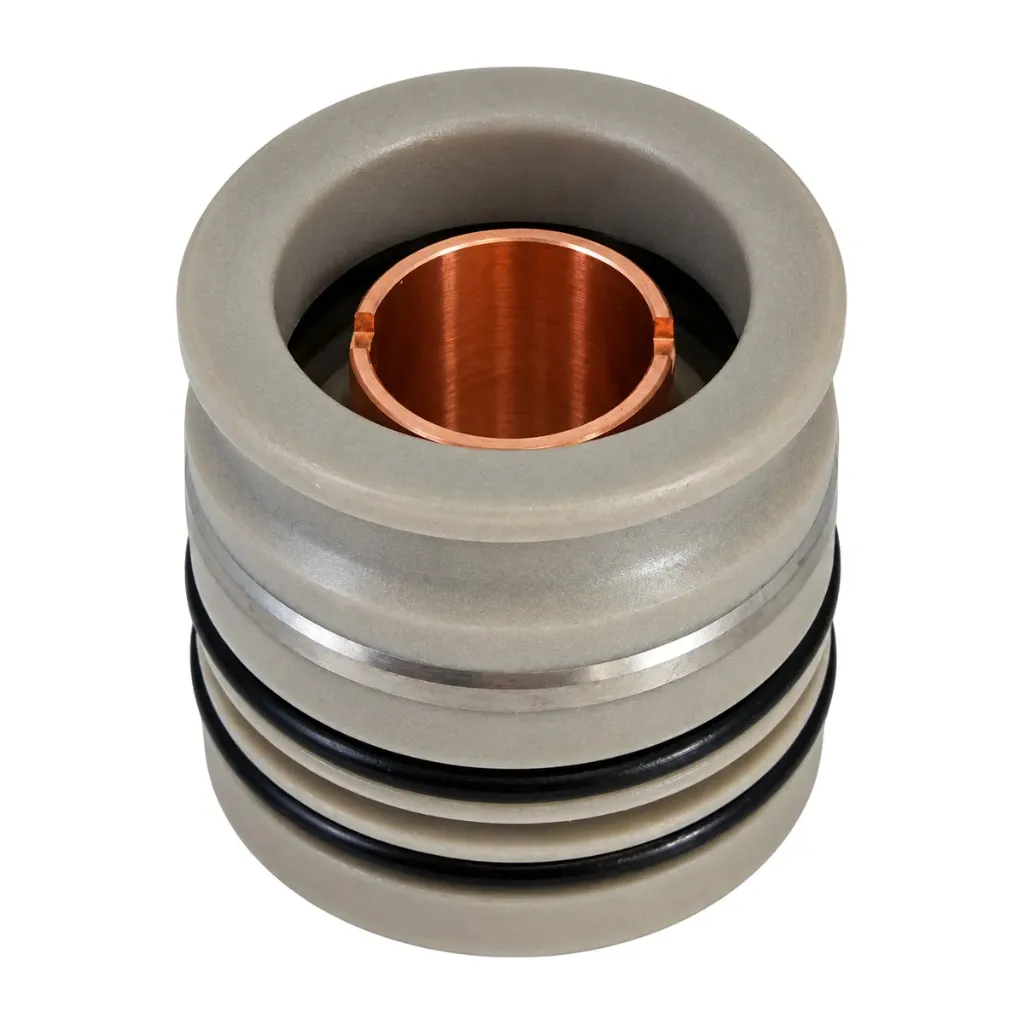

Centricut AM367-0364 is a nozzle adapter with holes and inner for Amada, replacing Amada part 71712350. The nozzle adapter with holes carries the nozzle in the Amada nozzle head and comes with the inner fitted. It measures 22.6 mm diameter by 22.5 mm high. Amada uses the same part numbers for the adapter with and without the inner, so check which one your head takes. The O-ring kit for this adapter is AM367-0397.
Centricut is made in Italy by Esse A, a contract manufacturer of laser consumables to OEMs worldwide and part of Hypertherm Associates since 2008. Every part is designed to match the original in fit, quality and performance, made under Hypertherm's internal quality standards, and checked on optical measuring systems and a CMM at Esse A's Sasso Marconi factory.
For Amada: 71712350, 7973459. Centricut part number: AM367-0364. Esse part number: AL360/AM. Listed in the Centricut laser catalogue 2026, page 9.
Commonly used on Amada ENSIS-AJ, VENTIS, FOL-AJ, F1 LCG and LCG 3015 NT laser heads. Always match the part number on your machine's parts list.
Amada is a trademark of AMADA CO., LTD. Centricut is in no way directly or indirectly affiliated with AMADA CO., LTD. All parts are made by or for Centricut and are compatible with the listed Amada product. Centricut is a registered trademark of Hypertherm, Inc.
