Images are indicative only and may not show the exact item supplied. Please order by part number.
Shield Caps

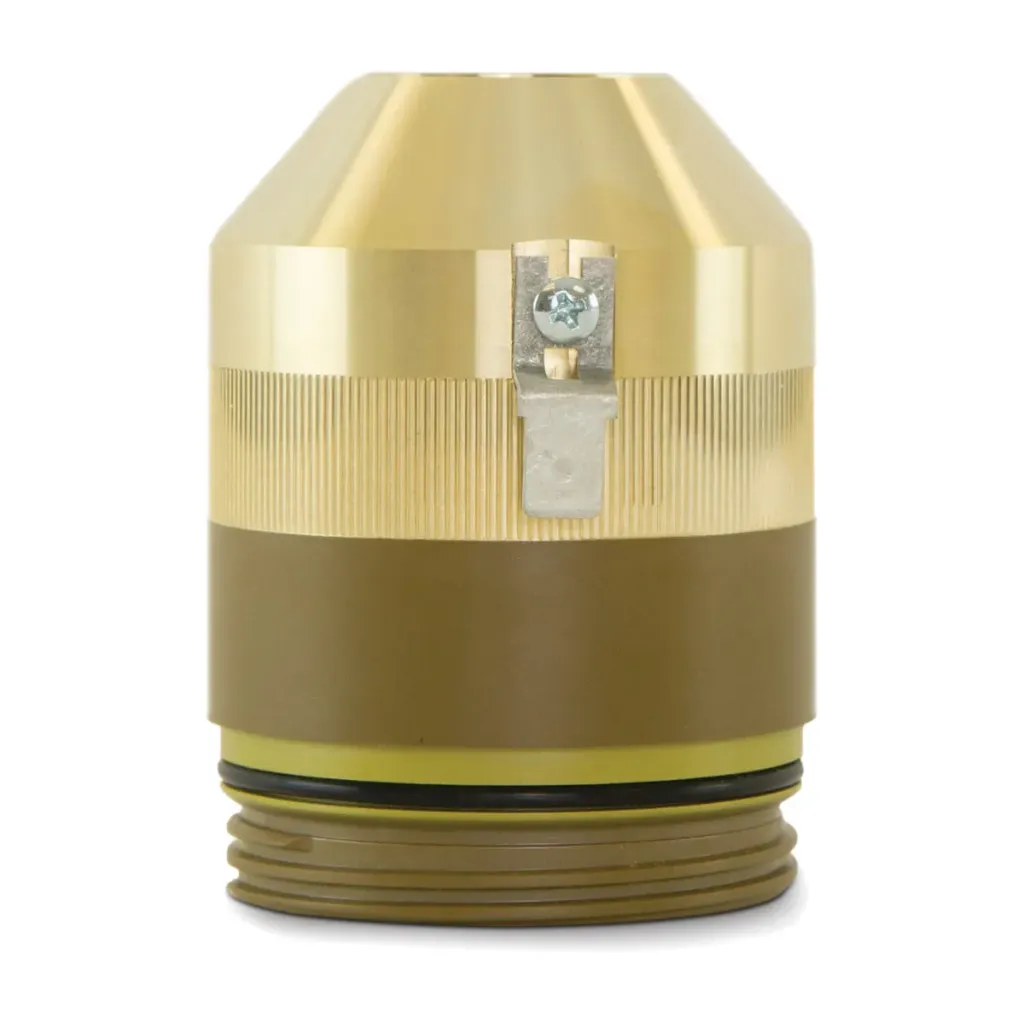

220173 Hypertherm Shield Cap - 30A to 130A with IHS Tab - HPR260/130 / HD4070 / HD3070
Part number: 220173
We take care to ensure fitment information is accurate, but your machine's operator manual is the definitive guide to consumable & parts compatibility. If you are unsure, contact us before ordering.
Plazmax is an authorised Hypertherm OEM Channel Partner.
Dispatched NZ and Australia wide. Prices exclude GST. 30 day returns on unopened stock.
Full specifications
| Part number | 220173 |
|---|---|
| Brand | Hypertherm |
| Component | Shield Caps |
| Amperage | 30A, 45A, 50A, 70A, 80A, 100A, 130A |
| Material | Mild Steel, Stainless Steel, Aluminium |
| Cut type | Straight |
| Fits systems | HPR260/130, HD3070 (HyPerformance torch), HD4070 (HyPerformance torch) |
Product details
The Hypertherm 220173 is the genuine OEM 30A to 130A shield cap for mild steel, stainless steel and aluminium cutting on HyPerformance HPR260, HPR130, HD4070 and HD3070 systems.
The shield cap is the outer retaining cap. It holds the shield in place over the nozzle and directs shield gas to the shield.
This shield cap covers every process from 30 amps to 130 amps across mild steel, stainless steel and aluminium. The IHS tab supports ohmic initial height sensing. HPRXD systems use shield cap 220747 instead.
Supplied by Plazmax as an Authorised Hypertherm Channel Partner. Genuine parts, GST-exclusive pricing, dispatched Australia and New Zealand wide.
