Swirl Rings

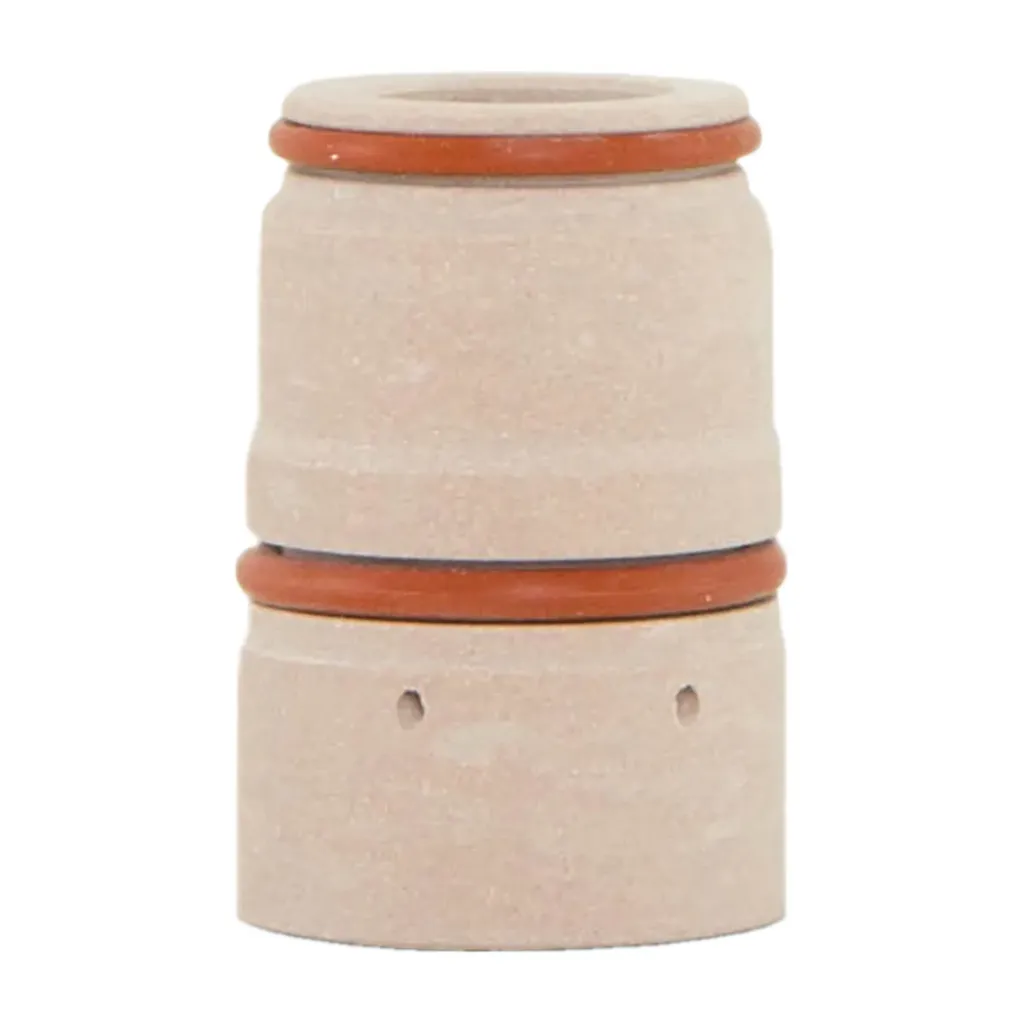

220631 Hypertherm Swirl Ring - 400A Mild Steel - HPRXD
Part number: 220631
We take care to ensure fitment information is accurate, but your machine's operator manual is the definitive guide to consumable & parts compatibility. If you are unsure, contact us before ordering.
Plazmax is an authorised Hypertherm OEM Channel Partner.
Dispatched NZ and Australia wide. Prices exclude GST. 30 day returns on unopened stock.
Full specifications
| Part number | 220631 |
|---|---|
| Brand | Hypertherm |
| Component | Swirl Rings |
| Amperage | 400A |
| Material | Mild Steel |
| Cut type | Straight, Bevel |
| Fits systems | HPRXD |
Product details
The Hypertherm 220631 is the genuine OEM 400A swirl ring for mild steel cutting on HyPerformance HPRXD systems.
The swirl ring controls the swirling action of the plasma gas around the electrode. That swirl centres the arc on the electrode and through the nozzle, which is what delivers faster cut speeds and thicker cut capability.
At 400 amps mild steel this swirl ring pairs with electrode 220629, nozzle 220632 and shield 220636. It is the standard clockwise rotation part; counter-clockwise mirror-image cutting uses a separate part number.
Supplied by Plazmax as an Authorised Hypertherm Channel Partner. Genuine parts, GST-exclusive pricing, dispatched Australia and New Zealand wide.
